Locks By Brand>>Schlage>>L-Series Mortise Locks

L-Series Mortise Locks

   L-Series mortise locks are engineered to meet or exceed commercial and institutional standards in an extensive selection of lock functions and decorative finishes. An expansive variety of lever and knob designs use a common, non-handed lock case, providing unsurpassed versatility and security in offices, schools, hospitals, hotels, and commercial buildings, as well as finer residences.

   Equipped with conventional cylinders and sectional trim, the L-Series extra heavy duty mortise lock provides ANSI 156.13, Grade 2 security to enhance its existing Grade 1 operational requirements for mortise locks with sectional and escutcheon trim. The series continues to exceed Grade 1 security requirements with concealed cylinders.

   The L-Series is the best choice for any building where security, safety, product life cycle, cost, and design compatibility are prime considerations.

Specifications

Applications: For commercial and institutional buildings where the finest in mortise locks are required.

Certifications: ANSI A156.13, 1994, Grade 1 Operational, Grade 2 Security. ANSI/ASTM F-476-84 Grade 30, U.L. Listed.

With Concealed Cylinder: A156.13, 1994, Grade 1 Operational, Grade 1 Security. ANSI/ASTM F-476-84 Grade 40, U.L. Listed.

Knobs and Levers: Cast/Forged Lever Designs: Forged brass, forged bronze, or cast stainless steel. 93 Lever: Extruded brass, bronze, or stainless steel. 41 and 42 Knobs: Wrought brass, bronze, or stainless steel knobs match in appearance and are equal to D-Series knobs. Mediterranean Designs: Forged brass levers match in appearance to ME-Series levers.

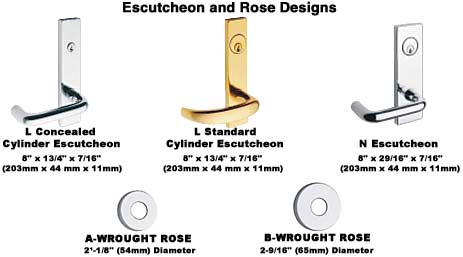

Roses: A Design: 21/8" (54 mm) Diameter wrought brass, bronze, or stainless steel. B Design: 29/16" (65mm) Diameter wrought brass, bronze, or stainless steel. Mediterranean Designs: Forged brass roses match in appearance to ME-Series roses.

Escutcheons: L escutcheons are cold forged brass or bronze and stainless steel. N escutcheons are heavy wrought reinforced brass, bronze, or stainless steel. L = 8" x 13/4" x 7/16" (203mm x 44mm x 11mm). N = 8" x 29/16" x 7/16" (203mm x 65mm x 11mm).

Trim Combinations: Available with knob both sides, lever both sides, or knob x lever, with rose or escutcheon both sides

Keying: 6 Pin tumbler with two nickel silver keys per lock. Stock locks are keyed 5 pin. Other keying options available from the factory include masterkeying, grandmasterkeying, construction keying, interchangeable core, and Primus® high-security cylinders.

Spacing: Center line knob/lever to center line cylinder, 37/8" (98mm); center line knob/lever to center line turn-piece, 211/16" (68mm).

Door Range:13/4" (44mm) standard. 13/8" to 21/2" (35mm - 64mm) regular parts assembled to order. Over 21/2" (64mm) door ranges vary by function. N escutcheon available for 13/4" (44mm) doors standard. 2" to 23/8" (51mm - 60mm) Regular parts assembled to order. Specify door thickness and armor front required.

Case Size: 47/16" x 61/16" x 1" (113mm x 154mm x 25mm).

Armored Front: 11/4" x 8" x 7/32" (32mm x 203mm x 6mm) standard. 1 1/16" x 8" x 7/32" (27mm x 203mm x 6mm) optional.

Backset: 23/4" (70mm) only.

Deadbolt: 1" (25mm) throw stainless steel.

Latchbolt: 3/4" (19mm) throw stainless steel with anti-friction tongue.

Functions: All functions are available except as follows: 93 Lever and N Escutcheon not available for L9486 function; Mediterranean Designs only available for L9010, L9040, L0170, L0172, L9050P, L9080P, L9453P, L9456P and L9485P functions.

SCHLAGE MORTISE LOCK FUNCTIONS

LEVER STYLES

To specify complete design, combine the numeric knob or lever design with the alpha rose or escutcheon design. Example: 30L, 93A, 42B. When ordering Mediterranean design levers with L escutcheons, specify AST/00L, AVA/00L, or MER/00L.

Example
Qty Product Outside Inside Hand Latch Strike DrThk Dim
Des Fin Des Fin
10 L9486P 01A 626 41A   RH * 10-072 134
Product:L9486P = Hotel function with standard cylinder.
Outside Design: 01A = #01 lever, 2 1/8" (54mm) diameter wrought rose.
Finish: 626 = Satin Chrome.
Inside Design: 41A = Knob, 2 1/8" (54mm) dia. wrought rose.
Door Hand: RH = Right Hand
*Latch: 1 1/4" (32mm) = Standard square corner armor fronts. Use to order nonstandard armor with locksets.
Strike: 10-072 = Standard 1 3/16" (30mm) lip.
Door: 1 3/4" = Standard door thickness.
Dim: Dimension used to order nonstandard lip strike.
Electrically Locking L-Series

L-Series locks are available for electrically locking and unlocking controls for high security and fire safety applications. They are U.L. Listed and rated for both fire and single point locking on labeled doors. Refer to the lock function pages for function availability. Available with "Request to Exit" feature when specified per XL11-807.

Disability turn (ADA) option to standard thumbturn. Can be used with any thumbturn function L-Series lock, except L9463 and L463. Specify lock per XL11-800 when ordering.

Furnished with lock function L9486P, this unit is used with A or B design roses only. It requires a 13/8" (35mm) cylinder for 13/4" (44mm) doors. When ordering separately, specify finish.

Find more information on Schlage L-line Mortise Locks at the Schlage website
